[김영한 스프링] 08. 커넥션풀과 데이터소스 이해 - DataSource 적용

DataSource 적용



기존 코드를 유지하기 위해 기존 코드를 복사해서 새로 만들자.

MemberRepositoryV0 -> MemberRepositoryV1

MemberRepositoryV0Test -> MemberRepositoryV1Test

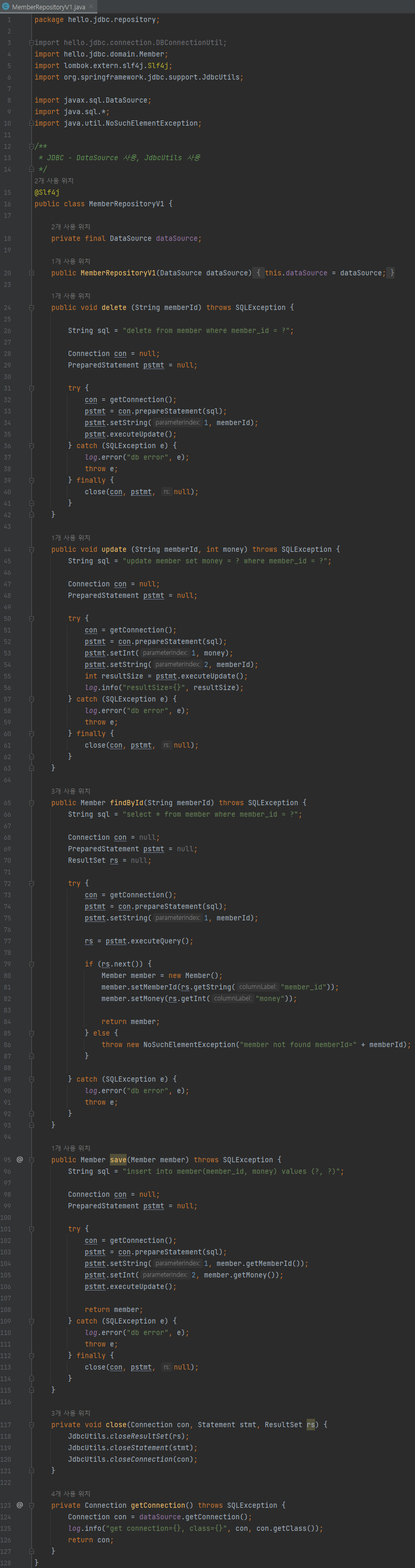

MemberRepositoryV1

package hello.jdbc.repository;

import hello.jdbc.connection.DBConnectionUtil;
import hello.jdbc.domain.Member;
import lombok.extern.slf4j.Slf4j;
import org.springframework.jdbc.support.JdbcUtils;

import javax.sql.DataSource;
import java.sql.*;
import java.util.NoSuchElementException;

/**
 * JDBC - DataSource 사용, JdbcUtils 사용
 */
@Slf4j
public class MemberRepositoryV1 {

    private final DataSource dataSource;

    public MemberRepositoryV1(DataSource dataSource) {
        this.dataSource = dataSource;
    }

    public void delete (String memberId) throws SQLException {

        String sql = "delete from member where member_id = ?";

        Connection con = null;
        PreparedStatement pstmt = null;

        try {
            con = getConnection();
            pstmt = con.prepareStatement(sql);
            pstmt.setString(1, memberId);
            pstmt.executeUpdate();
        } catch (SQLException e) {
            log.error("db error", e);
            throw e;
        } finally {
            close(con, pstmt, null);
        }
    }

    public void update (String memberId, int money) throws SQLException {
        String sql = "update member set money = ? where member_id = ?";

        Connection con = null;
        PreparedStatement pstmt = null;

        try {
            con = getConnection();
            pstmt = con.prepareStatement(sql);
            pstmt.setInt(1, money);
            pstmt.setString(2, memberId);
            int resultSize = pstmt.executeUpdate();
            log.info("resultSize={}", resultSize);
        } catch (SQLException e) {
            log.error("db error", e);
            throw e;
        } finally {
            close(con, pstmt, null);
        }
    }

    public Member findById(String memberId) throws SQLException {
        String sql = "select * from member where member_id = ?";

        Connection con = null;
        PreparedStatement pstmt = null;
        ResultSet rs = null;

        try {
            con = getConnection();
            pstmt = con.prepareStatement(sql);
            pstmt.setString(1, memberId);

            rs = pstmt.executeQuery();

            if (rs.next()) {
                Member member = new Member();
                member.setMemberId(rs.getString("member_id"));
                member.setMoney(rs.getInt("money"));

                return member;
            } else {
                throw new NoSuchElementException("member not found memberId=" + memberId);
            }

        } catch (SQLException e) {
            log.error("db error", e);
            throw e;
        }
    }

    public Member save(Member member) throws SQLException {
        String sql = "insert into member(member_id, money) values (?, ?)";

        Connection con = null;
        PreparedStatement pstmt = null;

        try {
            con = getConnection();
            pstmt = con.prepareStatement(sql);
            pstmt.setString(1, member.getMemberId());
            pstmt.setInt(2, member.getMoney());
            pstmt.executeUpdate();

            return member;
        } catch (SQLException e) {
            log.error("db error", e);
            throw e;
        } finally {
            close(con, pstmt, null);
        }
    }

    private void close(Connection con, Statement stmt, ResultSet rs) {
        JdbcUtils.closeResultSet(rs);
        JdbcUtils.closeStatement(stmt);
        JdbcUtils.closeConnection(con);
    }

    private Connection getConnection() throws SQLException {
        Connection con = dataSource.getConnection();
        log.info("get connection={}, class={}", con, con.getClass());
        return con;
    }
}

• DataSource 의존관계 주입
  • 외부에서 DataSource를 주입받아서 사용한다. 이제 직접 만든 DBConnectionUtil을 사용하지 않아도 된다.
  • DataSource는 표준 인터페이스 이기 때문에 DriverManagerDataSource에서 HikariDataSource로 변경되어도 해당 코드를 변경하지 않아도 된다.
• JdbcUtils 편의 메서드
  • 스프링은 JDBC를 편리하게 다룰 수 있는 JdbcUtils라는 편의 메서드를 제공한다.
  • JdbcUtils을 사용하면 커넥션을 좀 더 편리하게 닫을 수 있다.

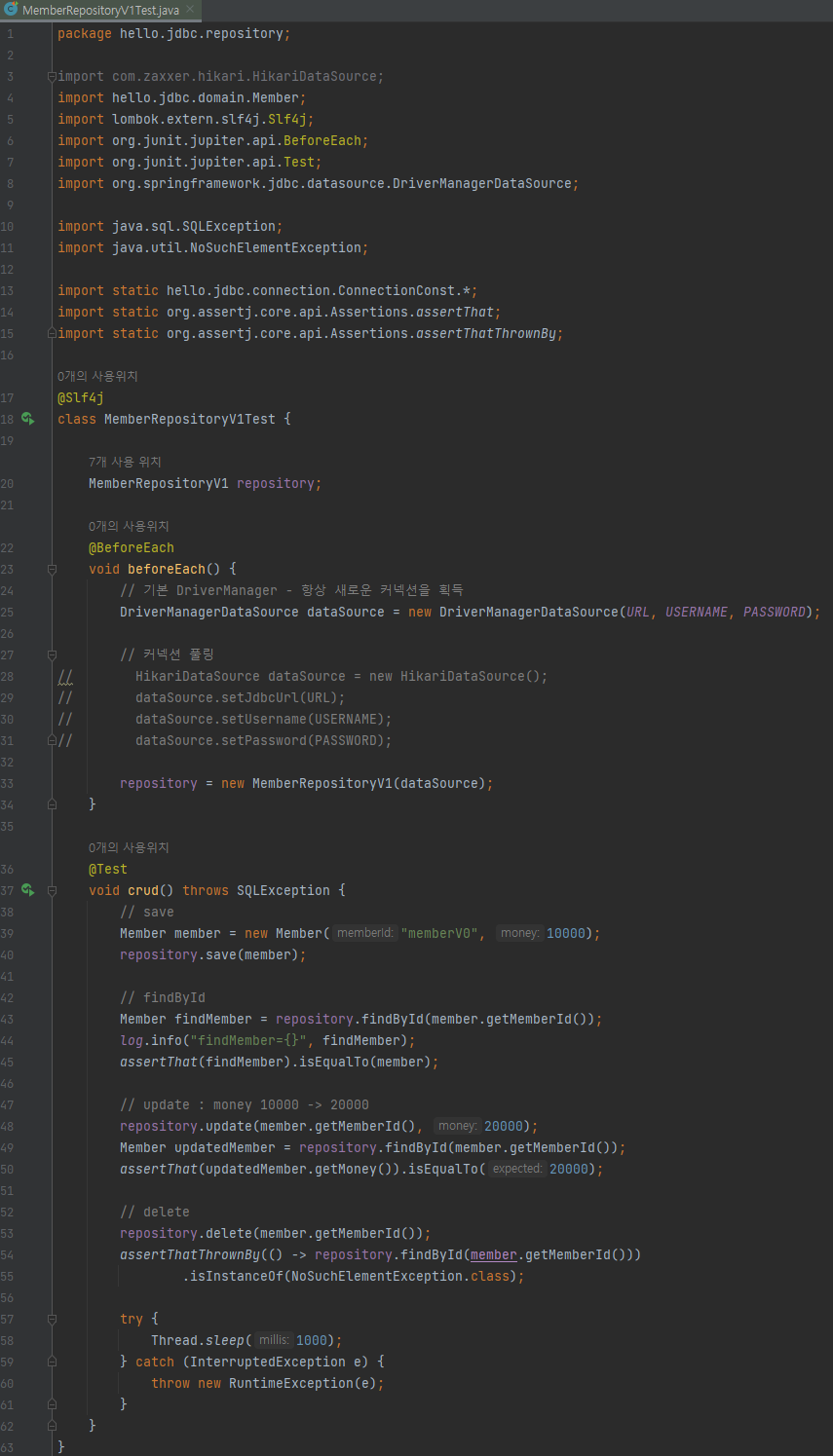

MemberRepositoryV1Test - DriverManagerDataSource 사용

package hello.jdbc.repository;

import com.zaxxer.hikari.HikariDataSource;
import hello.jdbc.domain.Member;
import lombok.extern.slf4j.Slf4j;
import org.junit.jupiter.api.BeforeEach;
import org.junit.jupiter.api.Test;
import org.springframework.jdbc.datasource.DriverManagerDataSource;

import java.sql.SQLException;
import java.util.NoSuchElementException;

import static hello.jdbc.connection.ConnectionConst.*;
import static org.assertj.core.api.Assertions.assertThat;
import static org.assertj.core.api.Assertions.assertThatThrownBy;

@Slf4j
class MemberRepositoryV1Test {

    MemberRepositoryV1 repository;

    @BeforeEach
    void beforeEach() {
        // 기본 DriverManager - 항상 새로운 커넥션을 획득
        DriverManagerDataSource dataSource = new DriverManagerDataSource(URL, USERNAME, PASSWORD);

        // 커넥션 풀링
//        HikariDataSource dataSource = new HikariDataSource();
//        dataSource.setJdbcUrl(URL);
//        dataSource.setUsername(USERNAME);
//        dataSource.setPassword(PASSWORD);

        repository = new MemberRepositoryV1(dataSource);
    }

    @Test
    void crud() throws SQLException {
        // save
        Member member = new Member("memberV0", 10000);
        repository.save(member);

        // findById
        Member findMember = repository.findById(member.getMemberId());
        log.info("findMember={}", findMember);
        assertThat(findMember).isEqualTo(member);

        // update : money 10000 -> 20000
        repository.update(member.getMemberId(), 20000);
        Member updatedMember = repository.findById(member.getMemberId());
        assertThat(updatedMember.getMoney()).isEqualTo(20000);

        // delete
        repository.delete(member.getMemberId());
        assertThatThrownBy(() -> repository.findById(member.getMemberId()))
                .isInstanceOf(NoSuchElementException.class);

        try {
            Thread.sleep(1000);
        } catch (InterruptedException e) {
            throw new RuntimeException(e);
        }
    }
}

MemberRepositoryV1은 DataSource 의존관계 주입이 필요하다.

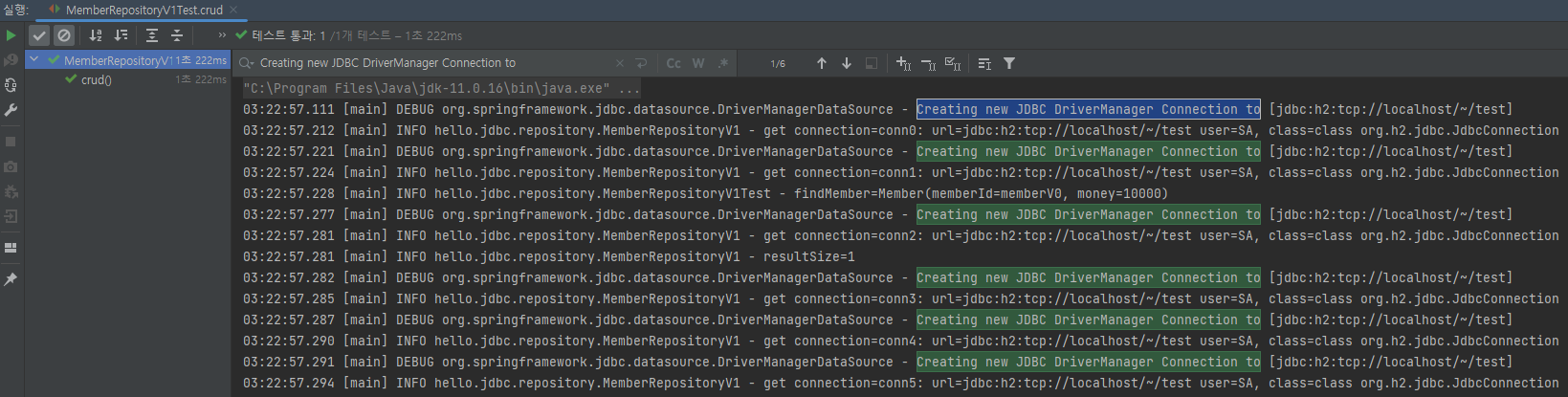

로그

DriverManagerDataSource를 사용하면 conn0~5 번호를 통해서 항상 새로운 커넥션이 생성되어서 사용되는 것을 확인할 수 있다.

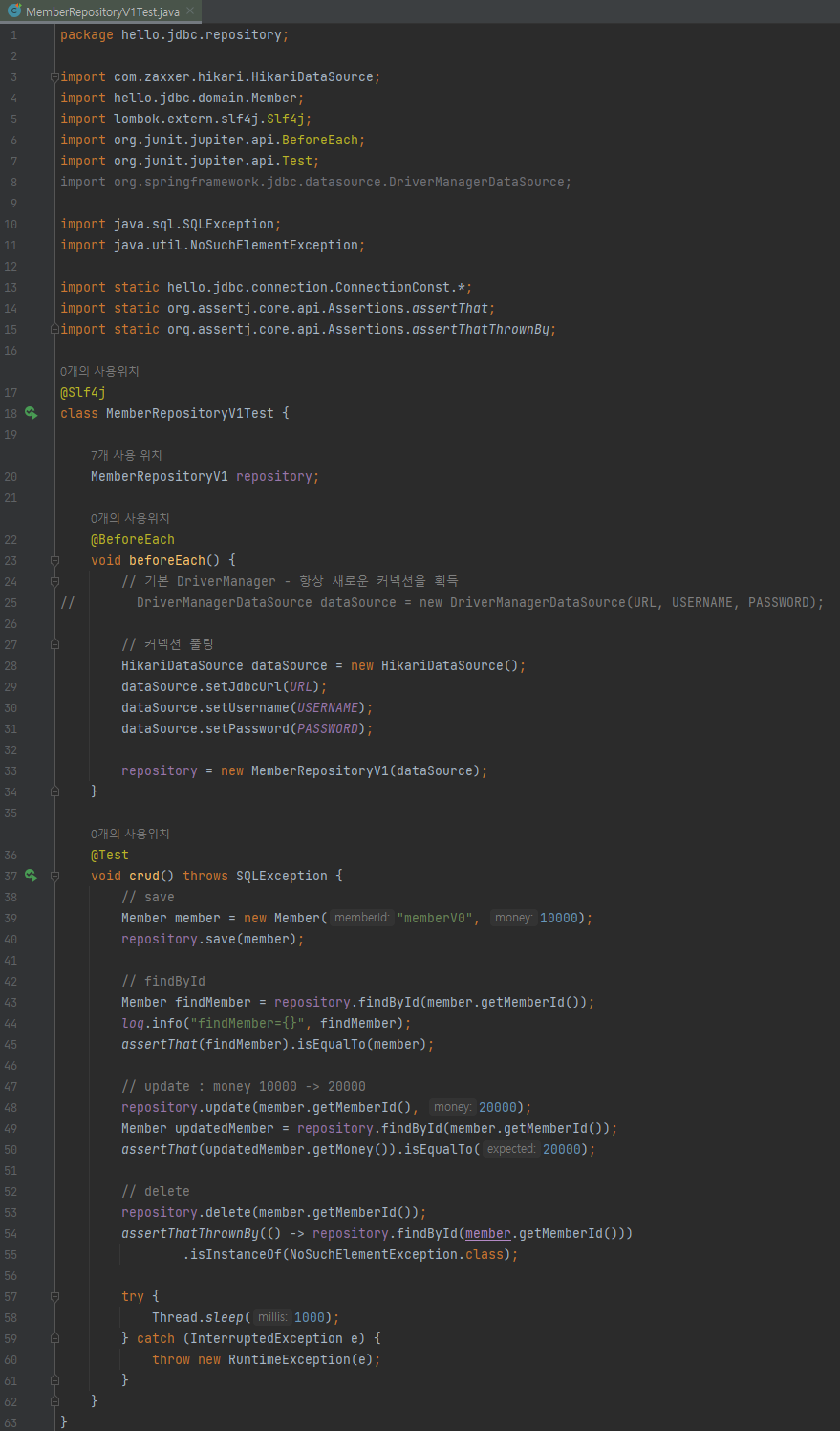

MemberRepositoryV1Test - HikariDataSource 사용

package hello.jdbc.repository;

import com.zaxxer.hikari.HikariDataSource;
import hello.jdbc.domain.Member;
import lombok.extern.slf4j.Slf4j;
import org.junit.jupiter.api.BeforeEach;
import org.junit.jupiter.api.Test;
import org.springframework.jdbc.datasource.DriverManagerDataSource;

import java.sql.SQLException;
import java.util.NoSuchElementException;

import static hello.jdbc.connection.ConnectionConst.*;
import static org.assertj.core.api.Assertions.assertThat;
import static org.assertj.core.api.Assertions.assertThatThrownBy;

@Slf4j
class MemberRepositoryV1Test {

    MemberRepositoryV1 repository;

    @BeforeEach
    void beforeEach() {
        // 기본 DriverManager - 항상 새로운 커넥션을 획득
//        DriverManagerDataSource dataSource = new DriverManagerDataSource(URL, USERNAME, PASSWORD);

        // 커넥션 풀링
        HikariDataSource dataSource = new HikariDataSource();
        dataSource.setJdbcUrl(URL);
        dataSource.setUsername(USERNAME);
        dataSource.setPassword(PASSWORD);

        repository = new MemberRepositoryV1(dataSource);
    }

    @Test
    void crud() throws SQLException {
        // save
        Member member = new Member("memberV0", 10000);
        repository.save(member);

        // findById
        Member findMember = repository.findById(member.getMemberId());
        log.info("findMember={}", findMember);
        assertThat(findMember).isEqualTo(member);

        // update : money 10000 -> 20000
        repository.update(member.getMemberId(), 20000);
        Member updatedMember = repository.findById(member.getMemberId());
        assertThat(updatedMember.getMoney()).isEqualTo(20000);

        // delete
        repository.delete(member.getMemberId());
        assertThatThrownBy(() -> repository.findById(member.getMemberId()))
                .isInstanceOf(NoSuchElementException.class);

        try {
            Thread.sleep(1000);
        } catch (InterruptedException e) {
            throw new RuntimeException(e);
        }
    }
}





로그

커넥션 풀 사용 시 conn0 커넥션이 재사용된 것을 확인할 수 있다.

테스트는 순서대로 실행되기 때문에 커넥션을 사용하고 다시 돌려주는 것을 반복한다. 따라서 conn0만 사용된다.

웹 애플리케이션에 동시에 여러 요청이 들어오면 여러 쓰레드에서 커넥션 풀의 커넥션을 다양하게 가져가는 상황을 확인할 수 있다.



DI

DriverManagerDataSource -> HikariDataSource로 변경해도 MemberRepositoryV1의 코드는 전혀 변경하지 않아도 된다. MemberRepositoryV1는 DataSource 인터페이스에만 의존하기 때문이다. 이것이 DataSource를 사용하는 장점이다.(DI + OCP)
